Creating Custom Location Rules for Advanced Custom Fields

See all of my location rules here: ACF Location Rules

Advanced Custom Fields is a powerful and user friendly plugin for creating metaboxes. One of the best features is the conditional logic you use to specify where a metabox appears. ACF refers to this as the “Location Rules”.

But what if there isn’t a location rule that matches your specific need? ACF can be easily extended with filters.

I’m going to show you how to create a custom rule (Page Ancestor), and add an option to an existing rule (“No Children” option on Page Type).

Building a Products Section

I’m working on a website that has a Products area. It’s only informational (not ecommerce) and the pages are pretty simple. I’m building it all using the “Page” post type.

It also supports multiple levels of categories. Some sections will just be Products > Category > Product Name, while others will be Products > Category > Subcategory > Product Name.

I’ve created two files in my theme: product.php for the single product view (if it has no children), and product-listing.php for the product listing view (if it has children). I’m using the following code in my theme’s functions.php file to use the correct template file:

<?php
/**
* Template Hierarchy
*
*/
function ea_template_hierarchy( $template ) {
if ( is_page() ) {
$ancestors = get_ancestors( get_the_ID(), 'page' );
$children = get_pages( array( 'child_of' => get_the_ID() ) );
// Product page has an ID of 25
if ( in_array( 25, $ancestors ) || 25 == get_the_ID() ) {
if ( !empty( $children ) ) {
$template = get_query_template( 'product-listing' );
} else {
$template = get_query_template( 'product' );
}
}
}
return $template;
}
add_filter( 'template_include', 'ea_template_hierarchy' );
view raw functions.php hosted with ❤ by GitHub

I need a metabox for managing product details, but only want it to appear on the single product pages, not the product listing pages.

Creating a Page Ancestors Location Rule

ACF has a “Page Parent” rule, but it only works for direct parents. If you’re on a grandchild page it will return false. I’m going to create a new rule called “Page Ancestor” that lets you select a page and will return true if the current page is an ancestor of the selected page at any level (child, grandchild, great grandchild…).

All of this code is going in my Core Functionality plugin. I created a file called acf.php to hold all of my ACF customizations.

Rule Type

First, I’m going to create the rule type. It’s going to be called “Page Ancestor” and be in the “Page” section:

<?php
/**
* ACF Rule Type: Page Ancestor
*
* @author Bill Erickson
* @see http://www.billerickson.net/acf-custom-location-rules
*
* @param array $choices, all of the available rule types
* @return array
*/
function ea_acf_rule_type_page_ancestor( $choices ) {
$choices['Page']['page_ancestor'] = 'Page Ancestor';
return $choices;
}
add_filter( 'acf/location/rule_types', 'ea_acf_rule_type_page_ancestor' );
view raw acf.php hosted with ❤ by GitHub

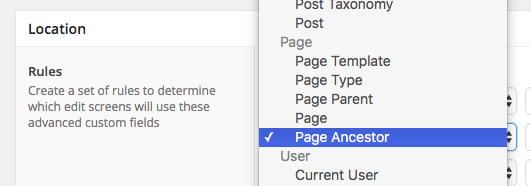

Now I have this option in my Location Rules:

Rule Values

We need to populate the rule values, the pages you can select as the ancestor. Since I want this to look and work just like the other page dropdowns, I copied the code for the ‘page’ rule values from here. We use a filter named acf/location/rule_values/{your rule type}:

<?php
/**
* ACF Rule Values: Page Ancestor
*
* @author Bill Erickson
* @see http://www.billerickson.net/acf-custom-location-rules
*
* @param array $choices, available rule values for this type
* @return array
*/
function ea_acf_rule_values_page_ancestor( $choices ) {
// Copied from acf/core/controllers/field_group.php
// @see http://bit.ly/1Xnx44g
$post_type = 'page';
$posts = get_posts(array(
'posts_per_page' => -1,
'post_type' => $post_type,
'orderby' => 'menu_order title',
'order' => 'ASC',
'post_status' => 'any',
'suppress_filters' => false,
'update_post_meta_cache' => false,
));
if( $posts )
{
// sort into hierachial order!
if( is_post_type_hierarchical( $post_type ) )
{
$posts = get_page_children( 0, $posts );
}
foreach( $posts as $page )
{
$title = '';
$ancestors = get_ancestors($page->ID, 'page');
if($ancestors)
{
foreach($ancestors as $a)
{
$title .= '- ';
}
}
$title .= apply_filters( 'the_title', $page->post_title, $page->ID );
// status
if($page->post_status != "publish")
{
$title .= " ($page->post_status)";
}
$choices[ $page->ID ] = $title;
}
}
return $choices;
}
add_filter( 'acf/location/rule_values/page_ancestor', 'ea_acf_rule_values_page_ancestor' );
view raw acf.php hosted with ❤ by GitHub
Rule Operator

I haven’t modified the rule operator, so it will use the defaults: is equal to and is not equal to. If you wanted to modify them, you can use the filter acf/location/rule_operators/

Rule Match

Finally, we need to specify the rule match code that runs when editing a page and decides if this metabox should display or not. We use a filter named acf/location/rule_match/{your rule type}. Remember that either operator can be used so you need to provide the logic for both:

<?php
/**
* ACF Rule Match: Page Ancestor
*
* @author Bill Erickson
* @see http://www.billerickson.net/acf-custom-location-rules
*
* @param boolean $match, whether the rule matches (true/false)
* @param array $rule, the current rule you're matching. Includes 'param', 'operator' and 'value' parameters
* @param array $options, data about the current edit screen (post_id, page_template...)
* @return boolean $match
*/
function ea_acf_rule_match_page_ancestor( $match, $rule, $options ) {
if ( ! $options['post_id'] || 'page' !== get_post_type( $options['post_id'] ) )
return false;
$ancestors = get_ancestors( $options['post_id'], 'page' );
$is_ancestor = in_array( $rule['value'], $ancestors );
if ( '==' == $rule['operator'] ) {
$match = $is_ancestor;
} elseif ( '!=' == $rule['operator'] ) {
$match = ! $is_ancestor;
}
return $match;
}
add_filter( 'acf/location/rule_match/page_ancestor', 'ea_acf_rule_match_page_ancestor', 10, 3 );
view raw acf.php hosted with ❤ by GitHub

Adding “No Children” option to “Page Type” Rule

You can modify existing Location Rules using the same filters as above if you know the name of the rule. You can dig through the ACF code to find it, or just “Inspect Element” in your browser and dive down in the select field.

Rule Values

Using the acf/location/rule_values/page_type filter I’m going to add “No Children” as one of the choices.

<?php
/**
* ACF Rule Values: Page Type
*
* @author Bill Erickson
* @see http://www.billerickson.net/acf-custom-location-rules
*
* @param array $choices, available rule values for this type
* @return array
*/
function ea_acf_rule_values_page_type( $choices ) {
$choices['no_children'] = 'No Children';
return $choices;
}
add_filter( 'acf/location/rule_values/page_type', 'ea_acf_rule_values_page_type' );
view raw acf.php hosted with ❤ by GitHub
Rule Match

Using the acf/location/rule_match/page_type filter I’m going to check for matches when ‘no_children’ is selected. Be sure to return the original $match rather than just true/false because there will likely be other rule matches that are running.

<?php
/**
* ACF Rule Match: Page Type
*
* @author Bill Erickson
* @see http://www.billerickson.net/acf-custom-location-rules
*
* @param boolean $match, whether the rule matches (true/false)
* @param array $rule, the current rule you're matching. Includes 'param', 'operator' and 'value' parameters
* @param array $options, data about the current edit screen (post_id, page_template...)
* @return boolean $match
*/
function ea_acf_rule_match_page_type( $match, $rule, $options ) {
// Only run for 'no_children' value
if ( 'no_children' != $rule['value'] ) {
return $match;
}
// Only run if post ID is defined and this is a page
if ( ! $options['post_id'] || 'page' != get_post_type( $options['post_id'] ) ) {
return $match;
}
$children = get_pages( array( 'child_of' => get_the_ID() ) );
if ( '==' == $rule['operator'] ) {
$match = empty( $children );
} elseif ( '!=' == $rule['operator'] ) {
$match = ! empty( $children );
}
return $match;
}
add_filter( 'acf/location/rule_match/page_type', 'ea_acf_rule_match_page_type', 10, 3 );
view raw acf.php hosted with ❤ by GitHub

Share your custom location rules

As you can see, with a few lines of code you can write your own custom logic for when a metabox appears on the page. Be sure to share your own implementations in the comments below.
