Post Type Linking

This post has been marked as old. The code might no longer work. Comments have been disabled as this is no longer maintained. Use the search on the right to find a newer tutorial.

Custom post types should be used to differentiate between different types of content. A useful feature that’s missing is the ability to form a relationship between posts in one content type and another.

For example, if you have an Events post type and a Musicians post type, you might want to link a musician with a certain event.

A recent client needed this feature, so I hired Chris Bratlien to help me develop it. I’m releasing the code to the WordPress community to help others solve this problem.

Code

Before you drop this code in your site, be sure to read the usage notes below. There’s some parts you’ll need to change to fit your needs.

Download the code here.

Here’s the content of erickson-post-links.php, which you can either drop directly in your functions.php file or keep in a separate file and include it:

[php]/*** Erickson Post Links **/

global $wpdb;
define(‘BE_LINKS’, $wpdb->prefix . ‘be_links’);

function be_create_post_type() {
register_post_type( ‘events’,
array(
‘labels’ => array(
‘name’ => __( ‘Events’ ),
‘singular_name’ => __( ‘Event’ )
),
‘public’ => true,
)
);
register_post_type( ‘musicians’,
array(
‘labels’ => array(
‘name’ => __( ‘Musicians’ ),
‘singular_name’ => __( ‘Musician’ )
),
‘public’ => true,
)
);
}
//add_action( ‘init’, ‘be_create_post_type’ );
// ** Uncomment the above line if you need to generate the post types

function create_be_links_table() {
global $wpdb;

if($wpdb->get_var("SHOW TABLES LIKE ‘" . BE_LINKS . "’") != BE_LINKS) {
$sql = "CREATE TABLE  `" . BE_LINKS . "` (
`id` BIGINT NOT NULL AUTO_INCREMENT PRIMARY KEY ,
`a` BIGINT NOT NULL ,
`b` BIGINT NOT NULL
) ENGINE = MYISAM ;";
$wpdb->query($sql);

$sql = " ALTER TABLE `" . BE_LINKS . "` ADD UNIQUE  `uniqueAB` (  `a` ,  `b` );";
$wpdb->query($sql);
}

}
add_action(‘init’,’create_be_links_table’);

function be_link($a,$b) {
global $wpdb;

if ($a == $b) {
return;
}

$sql = sprintf(
"INSERT INTO %s" .
" (a,b) " .
" VALUES " .
" (%d,%d) ",
BE_LINKS,
$a,
$b);
$wpdb->query($sql);
}

function be_unlink($a,$b) {
global $wpdb;

$sql = sprintf(
"DELETE FROM " . BE_LINKS .
" WHERE (a = %d AND b = %d) " .
" OR (a = %d AND b = %d) "
,
$a,
$b,
$b,
$a);

$wpdb->query($sql);

}
function be_unlink_all($id) {
global $wpdb;

$sql = sprintf(
"DELETE FROM " . BE_LINKS .
" WHERE a = %d " .
" OR b = %d "
,
$id,
$id);

$wpdb->query($sql);

}
function be_peers($id) {
global $wpdb;

$sql = sprintf(
" SELECT a,b FROM  %s " .
"   WHERE a = %s" .
"   OR b = %s",
BE_LINKS,
$id,
$id);

$rows = $wpdb->get_results($sql);

$result = array();
foreach ($rows as $row) {
if ($row->a == $id) {
$result[] = $row->b;
}
else {
$result[] = $row->a;
}
}
return $result;

}

function be_insert_post($post_id,$post = null) {
$old_peers = be_peers($post_id);

$new_peers = array();
if (array_key_exists(‘peer’,$_POST)) {
foreach($_POST[‘peer’] as $id => $on) {
$new_peers[] = $id;
}
}

$inserts = array_diff($new_peers,$old_peers);
$deletes = array_diff($old_peers,$new_peers);

foreach($deletes as $peer) {
be_unlink($post_id,$peer);
}
foreach($inserts as $peer) {
be_link($post_id,$peer);
}
}

add_action(‘wp_insert_post’,’be_insert_post’);

function be_metabox_init() {
add_meta_box("link-meta", "Musicians", "be_link_meta_box", "events");
add_meta_box("link-meta", "Events", "be_link_meta_box", "musicians");
//add_meta_box( $id, $title, $callback, $page, $context, $priority, $callback_args );
}
add_action(‘admin_init’,’be_metabox_init’);

function be_link_meta_box() {
global $post;

if ($post->post_type == ‘events’) {
$peer_term = ‘musicians’;
}
else {
$peer_term = ‘events’;
}

$all_peers = get_posts(‘posts_per_page=-1&showposts=-1&post_type=’ . $peer_term);
$my_peers = be_peers($post->ID);
?>
<table>
<?php foreach($all_peers as $peer): ?>
<tr>
<td>
<input type="checkbox" name="peer[<?php echo $peer->ID; ?>]"
<?php if (in_array($peer->ID,$my_peers)) { echo ‘checked="checked"’; } ?> />
</td>
<td>
<?php echo $peer->post_title; ?>
</td>
</tr>
<?php endforeach; ?>
</table>
<?php

}[/php]

Usage Notes

  • I’ve included the code to create two post types, but it’s not activated. To create two new post types, remove the // from add_action( 'init', 'be_create_post_type' );.
  • This code assumes you have post types named Events (slug events) and Musicians (slug musicians). Make sure you replace all the names and slugs with the post types you’re using.
  • Once the code is set up correctly, log into the WordPress backend. Add or create a post in one of the post types. If you’re in the Events post type, you’ll see a list of all the Musicians posts. Check any that are applicable. (See the screenshot at the top of this post.)
  • Here’s how to use it in your theme: $peers = be_peers($post->ID);
  • $peers will store an array of post ID’s, and you can do whatever you like with it.

Examples

This will display an unordered list of the linked posts:


$peers = be_peers($post->ID);
if($peers):
echo '<ul>';
foreach ($peers as $peer)
 echo '<li><a href="'.get_permalink($peer).'">'.get_the_title($peer).'</a></li>';
echo '</ul>';
endif;

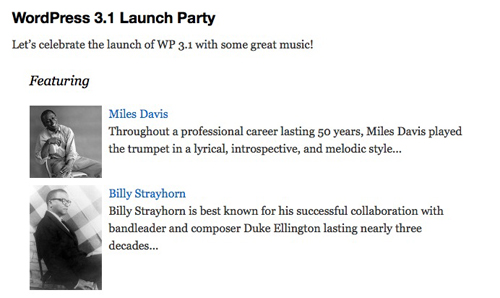

This will display the post thumbnail, post title (linked to post) and summary. Below the code is a screenshot of it in use:

$peers = be_peers($post->ID);
if($peers):
if(get_post_type() == 'events') {
echo '<ul>';
echo '<h3>Featuring</h3>';
foreach ($peers as $peer):
echo '<div>'.get_the_post_thumbnail($peer, 'thumb').'<a href="'.get_permalink($peer).'">'.get_the_title($peer).'</a><br />'.get_post($peer)->post_excerpt.'</div>';
endforeach;
echo '</ul>';
}
endif;

Future Improvements

There’s two big additions I’m planning to make in the future:

  • Make it so you can link any number of post types together. Right now the code is limited to two.
  • Turn this into a plugin with a backend interface, so you don’t have to mess with code to implement it.

Right now, this solution is working well for my needs, so that’s a wish-list. When one of them becomes necessary for a client project it will get done, or if I have enough free time.

I’ve also found a request for this feature being integrated in WordPress core, but it was shot down. I agree with Mike Schinkel that this is a common need by those who use WordPress as a CMS, and would love to see it become part of core. Until then, I’ll use this solution.

Feel free to take my code and implement any improvements you can think of. Just please share those improvements.

Bill Erickson

Bill Erickson is the co-founder and lead developer at CultivateWP, a WordPress agency focusing on high performance sites for web publishers.

About Me
Ready to upgrade your website?

I build custom WordPress websites that look great and are easy to manage.

Let's Talk

Reader Interactions

Comments are closed. Continue the conversation with me on Twitter: @billerickson

Comments

  1. David Radovanovic says

    Your WordPress sites are very clean and refined. I appreciate your tips. Keep em coming! Thanks for sharing.

  2. Tom says

    Firstly, I’d like to say how pleased I am to have found your post – I’ve been trying to figure out a way around this for quite some time.

    What I’m trying to do is to have two custom post types Jobs & Surveys, and then a third, Customers. Each custom can be linked to many different jobs & surveys. So you can see how your code is on the right tracks for what I need, if not quite there.

    Another worry is performance… in your example – say you had 500 musicians, how would you display these on the event creation screen? Would it not be possible to have a little search box inside the event meta box, which does a search (ajax style) on the musicians?

    Brilliant start, any idea when you might work it into a full plugin?

    • Bill Erickson says

      I’ve actually just found a plugin that does everything my code does and more. It’s called Posts 2 Posts.

      Key features:
      – The ability to make as many links as you like (not limited to only one link like mine)
      – Better interface for adding new linked posts. Instead of a long list of all posts, it gives you a search box so you can find the one you want.

  3. Tom says

    Wow… thats actually quite amazing. I think you may have just solved quite an ongoing problem for me. When theres a will, theres a WordPress way 🙂

    • Bill Erickson says

      I’m really hoping this becomes a core feature of WordPress. Until then, if you can think of it, there’s probably a plugin for it.

      I need to learn to search before I build or hire someone to build 🙂

      • Tom says

        To be fair, I’ve been searching for that functionality for quite some time without any joy (until stumbling upon your blog!). If it became a core feature of WordPress that’d be even better – from the look of it, its not that technically difficult plus it does fit in well with WordPress’ focus on content organisation.

        Oh and that plugin even supports reciprocal connections, only storing it once in the database. Awesome!

  4. Paula Drake says

    Firstly, I’d like to say how pleased I am to have found your post – I’ve been trying to figure out a way around this for quite some time. What I’m trying to do is to have two custom post types Jobs & Surveys, and then a third, Customers. Each custom can be linked to many different jobs & surveys. So you can see how your code is on the right tracks for what I need, if not quite there. Another worry is performance… in your example – say you had 500 musicians, how would you display these on the event creation screen? Would it not be possible to have a little search box inside the event meta box, which does a search (ajax style) on the musicians? Brilliant start, any idea when you might work it into a full plugin?

    • Bill Erickson says

      While considering to build it as a plugin, I found a plugin that already did everything I wanted: Posts2Posts

      Key improvements:
      – Ability to link many post types to many others (not limited to just 2 like mine)
      – Instead of a long list of posts you can link to, it has a live search box. Start typing the post you’re looking for and search results are displayed, and clicking one creates the link.
